Product introduction

The medium quantity A-type shelves are mainly composed of C-shaped columns, crossbeams, and pallets with cold plate layers. The load-bearing capacity of each layer of the unit shelf is generally between 200-400KG, and the total load-bearing capacity is generally not more than 2500KG. The span of unit shelves is usually not more than 2.6m, the depth is not more than 1m, and the height is generally within 4.5m. The main features are bolt free connection, easy assembly and disassembly (only a rubber hammer is needed for assembly/disassembly), beautiful appearance, and suitable for manual storage and retrieval of goods The main component layers are made of cold-rolled steel plates, which can be adjusted up and down at a step distance of 50mm. For the convenience of operators to access goods, they can be used separately or spliced into an arrangement.

The surface of the medium quantity A-type shelves has undergone acid pickling, phosphating, and epoxy resin spraying treatment, resulting in a beautiful color and convenient cleaning treatment.

This medium quantity A-type shelf can meet the storage needs of enterprise warehouses, production lines, storage supermarkets, clothing and distribution centers. Steel laminates can also be replaced with wooden laminates as required.

Isolation mesh can also be installed around the medium quantity A-type shelves to meet the requirement of separate management of products.

The colors usually include: light gray, navy blue, and orange red. You can also customize specified colors according to the requirements of the enterprise.

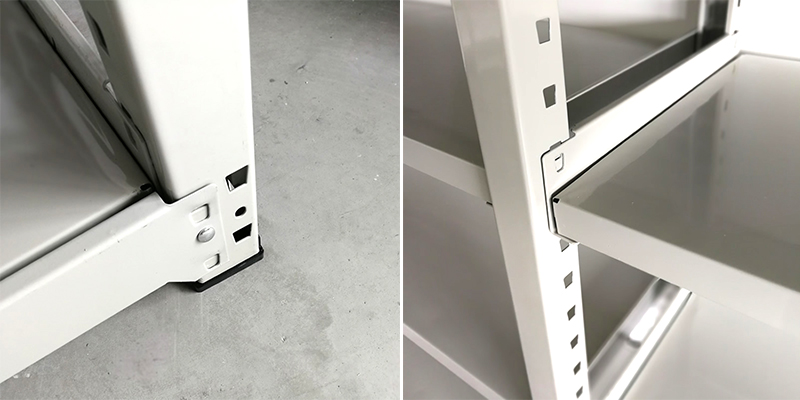

中量A型貨架(圖1)

Medium quantity A-type shelves

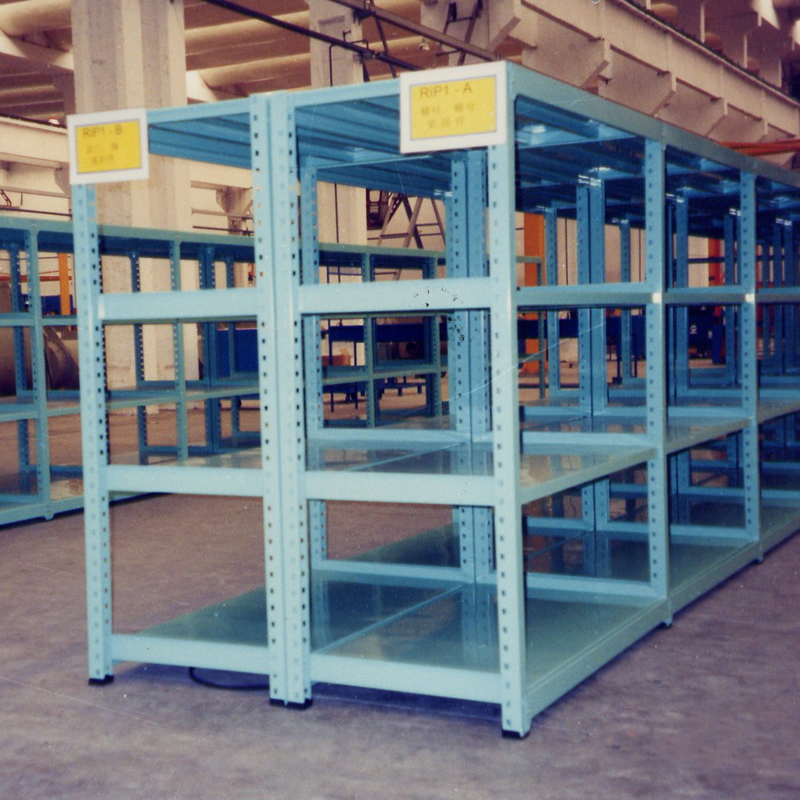

中量A型貨架(圖2)

Medium quantity A-type shelves

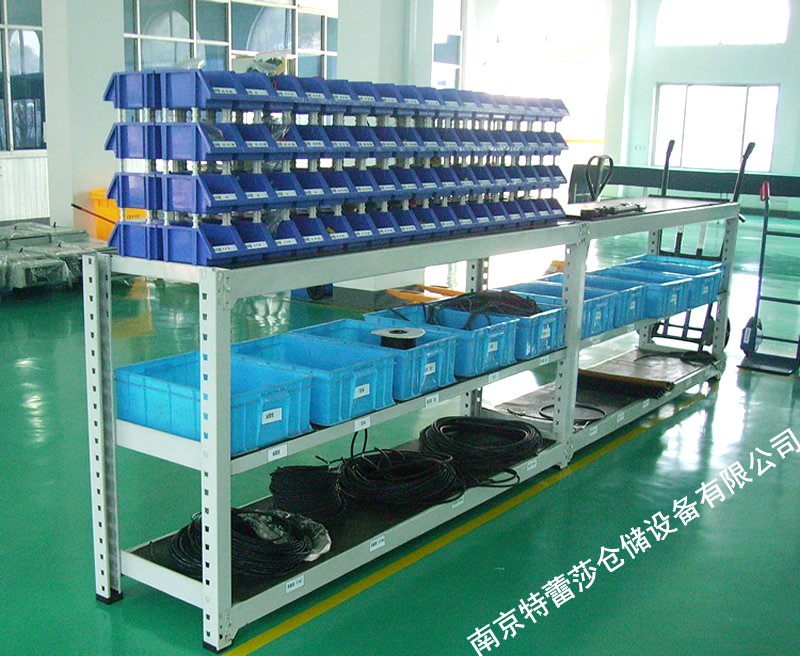

中量A型貨架(圖3)

Medium quantity A-type shelves

中量A型貨架(圖4)

Medium quantity A-type shelves

Specification of steel laminates (length * width)

1200*470
1200*600
1200*720
1200*800
1200*920
1200*1180

Large load capacity on each floor

250KG
250KG
250KG
300KG
400KG
400KG

Specification of steel laminates (length * width)

1500*470
1500*600
1500*720
1500*800
1500*920
1500*1180
Large load capacity on each floor
250KG
250KG
250KG
300KG
400KG
400KG
Specification of steel laminates (length * width)
1800*470
1800*600
1800*720
1800*800
1800*920
1800*1180
Large load capacity on each floor
250KG
250KG
250KG
300KG
400KG
400KG

Column specifications

55*55*1.5(pitch=50)H=1.5m、1.8m、2m、2.4m、3m

Surface Treatment

Epoxy resin powder spray molding

colour

Light gray, navy blue, orange red

notes

Non standard specifications can be customized
